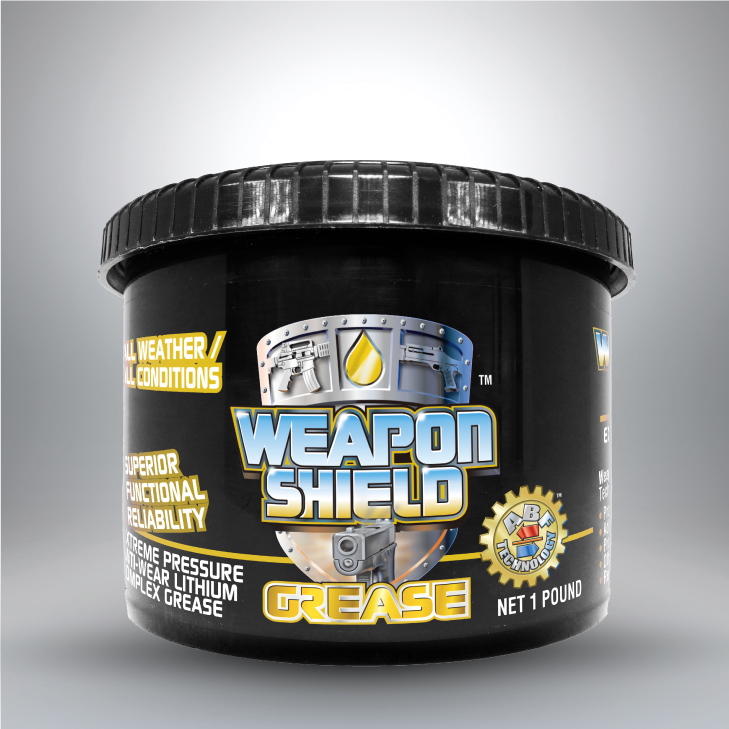

WEAPON SHIELD GREASE

The Best Weapon Lubricant In the World


    Advantages:

    • Increases Lubrication Significantly
    • Keeps Weapon Functional Under Any Conditions
    • Reduces Friction For Maximized and Efficient Operations
    • Reduces Wear On All Moving Metal Parts
    • Shields Against Corrosion and Rust
    • Shields And Protects
    • Non-Flammable
    • Non-Hazardous


  • NLGI Grade:

    • No. 1
  • Available Volumes:

    • 10mL Jar
    • 2 oz. Tub
    • 1 lb Tub
    • 5 lb Tub
    • 400 lb Drum
Specifications MSDS


Weapon Shield Grease is the ultimate in extreme pressure anti-wear lithium complex grease for specialty weapons and gear. It exceeds all other lithium complex greases due to the addition of "Weapon Shield" known for its ABF (Advanced Boundary Film) Technology, extreme pressure and anti-friction additives added to its formula. Weapon Shield Grease treats, seals and smoothes metal surfaces to dramatically reduce friction as well as friction related heat and wear. Weapon Shield Grease's unique formulation allows it to exceed the performance of other greases while using smaller quantities.


Applications

Any types of light, medium & heavy weapons


Directions of Usage

Weapon Shield Grease was designed primarily for usage on all Garand style actions such as M1A1s, M-14s, M1 Carbines, Mini 14s, Mini 30s, Medium and Heavy Machine Guns such as M249 SAWs and M2 (Maw Deuces) .50 cal BMGs. Usage on lighter weapon actions and moving parts may affect cycling during very cold weather. We highly recommend using Weapon Shield (CLP) for all other weapons except those mentioned above.

  1. For the best results, remove all remaining grease or residue in all areas where grease is to be applied using "Weapon Shield Solvent".
  2. Apply grease with syringe exactly where you want it. IMPORTANT: After applying grease, pull back syringe applicator to draw back grease from syringe nozzle.
  3. Cap nozzle

FOR SUPPRESSORS:
Bending the nozzle of the syringe slightly (30-40 degrees), run orapply a thick bead of grease around the inside of the rear blast chamber. The first shot will disburse the grease throughout the can and reduce sound signature significantly.


General Data

Properties Standard Unit Result
NLGI Grade  No. 1
Penetration, Worked, 60s D-217 310 - 340
Penetration, UnworkedD-217 310 - 340
Thickener Type  Lithium Complex
Thickener, %D128 6 - 8
Color  Light Amber
Texture  Smooth
Dropping pointD-2265500
Viscosity @ 40℉D-445cSt220
Viscosity @ 100℉D-445cSt19
Viscosity IndexD-2270 95
Flash PointD-92464
Fire PointD-92550
Timken OK loadD-2509lbs.60+
RustD-1743 Pass
Copper CorrosionD-4048 1B
4-Ball Wear TestD-2266mm0.7
4-Ball EP Weld TestD-2596Kg Min.800 / Pass
Oxidation Induction time @210℃D-5483min95
Water washout @ 79℃D-1264 0.027
Mobility at 77℉US Steel Mobility Testg/min
Mobility at 60℉ g/min515
Mobility at 40℉ g/min257.1
Mobility at 20℉ g/min78.9
Mobility at 0℉ g/min5.4
